FEATURES & APPLICATIONS
Features
- The ideal cordless impact wrench for non-structural fastening, such as MEP supports and handrails
- Longer tool lifetime – brushless motor means the impact wrench lasts longer and gets more work done per charge
- Automate precise torquing – add the optional SI-AT-22 Adaptive Torque Module to save time when installing compatible anchors in line with approvals
- Faster anchor setting with more control – three speed settings and improved LED light
- On the Nuron battery platform – cordless impact wrenches without compromise thanks to longer-lasting batteries, time-saving accessories and a range of services to keep you productive, today and tomorrow
Applications

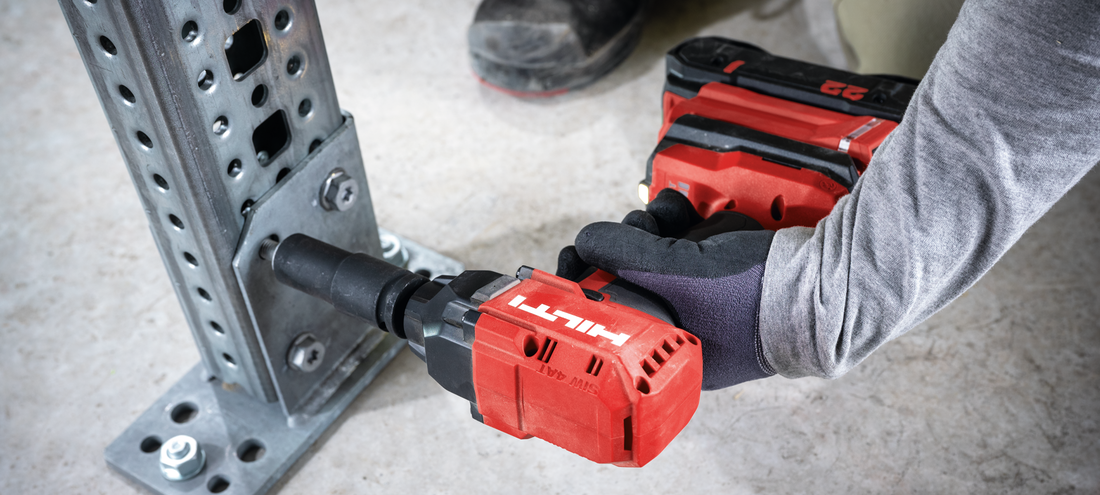

- Bolting steel – such as for handrails, racking and machinery (M8-M16 diameter)

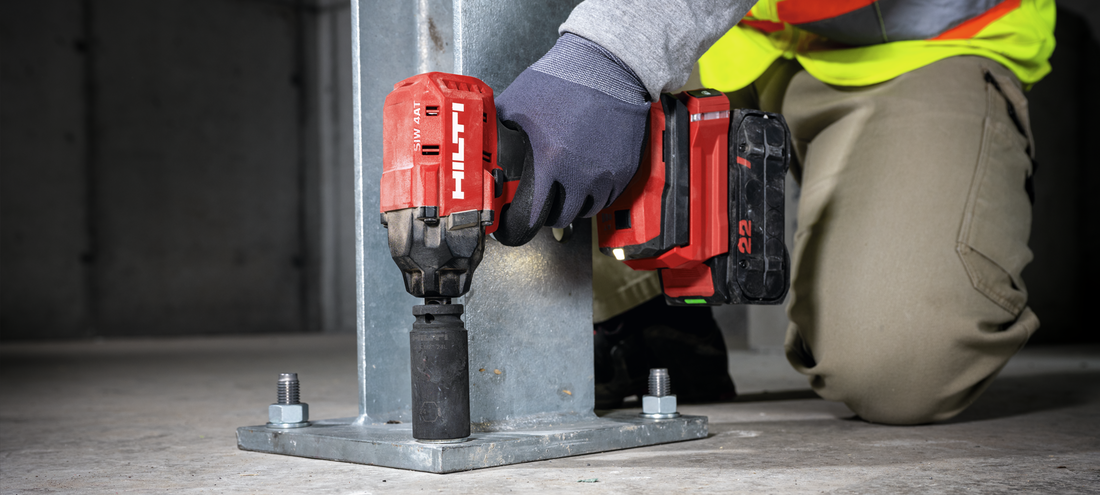

- Setting HUS anchors in concrete – such as for baseplates, formwork props, handrails and temporary fixtures (6-8 mm diameter)

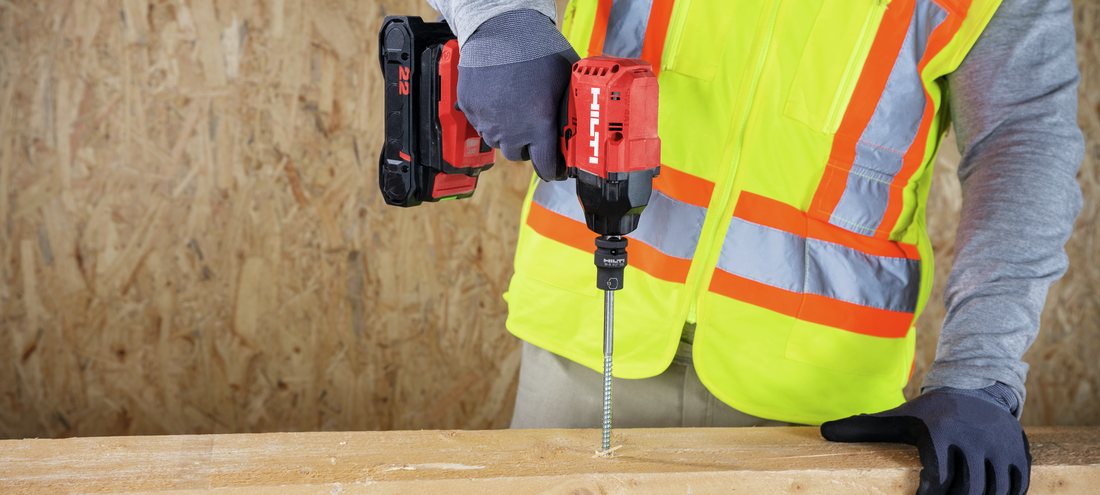

- Lag bolting in wood – such as for wooden roofs or temporary structures (8-10 mm diameter)
- Setting wedge anchors in concrete (M8-M16 diameter)
- Driving screws into 8 mm and 10 mm HRD frame anchors in masonry and concrete
PRODUCT INFORMATION
Cordl. impact wrench SIW 4AT-22 1/2" box
- Item Number: 2291190
- # of items in Package: 1
Cordl. impact wrench SIW 4AT-22 1/2 case
- Item Number: 2291205
- # of items in Package: 1
TECHNICAL DATA
- Anvil type: 1/2" detent pin
- Maximum torque: 90 Nm (1); 135 Nm (2); 213 Nm (3)
- Nut-busting torque: 338 Nm
- Full hammering frequency: 3500 impacts/minute
- Number of gears: 3
- No load RPM: 1: 1000 rpm; 2: 1500 rpm; 3: 2300 rpm
- Dimensions (LxWxH): 152 x 68 x 215 mm
- Tool body weight: 1.03 kg
- A-weighted emission sound pressure level: 92.5 dB (A)
