HIT-RE 500 V4 Injectable Mortar

No items found.

FEATURES & APPLICATIONS

Features

Exceptional performance and code-compliant design for virtually all steel-to-steel and steel-to-concrete fastenings – ETA rating for anchoring, including certification for C1 and C2 seismic loads and ETA certification for rebar installation, including flammable and earthquake-reactive environments
First epoxy mortar certified according to EAD 332402-00-0601 for concrete-to-concrete fasteners – strong joints can now be designed and executed using non-overlap adhesive reinforcement in accordance with the latest TR069 design method
Suitable for use in the most demanding working environments – effective even in diamond drilled holes, drilled in wet concrete or under water (depending on the characteristics and bar class), as well as in extremely deep injections, in large diameter holes and at temperatures as low as -5 °C / 23 °F
Increased bonding strength in the most demanding environments such as cracked concrete and seismically active C2 zones
Easier selection and ordering – use PROFIS Engineering for fastening design using base plates and PROFIS Rebar for concrete-to-concrete fastening design according to EC2, TR069 or the Hilti design method

Applications

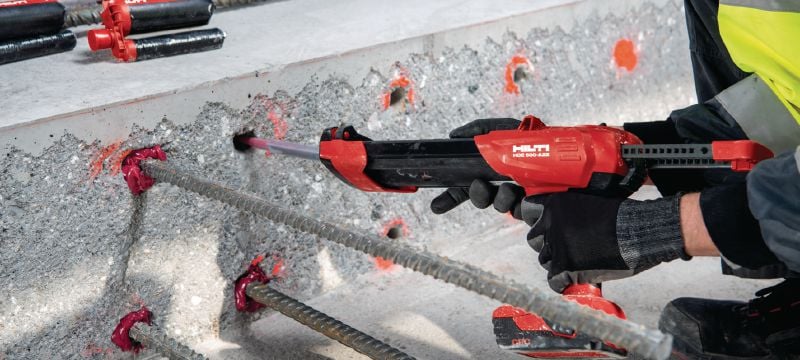

Structural connections with post-installed rebar (e.g. slab extensions, wall/column connections, stairs, foundations, etc.)
Structural renovation of buildings, bridges and other civil works, retrofitting and re-strengthening of concrete members
Anchoring structural steel connections (e.g. steel columns, beams, etc.)

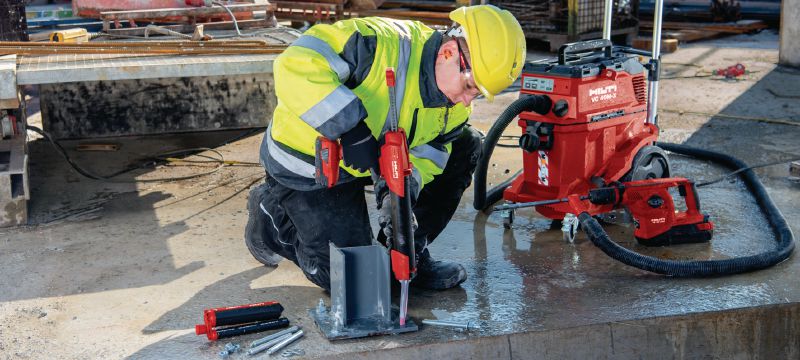

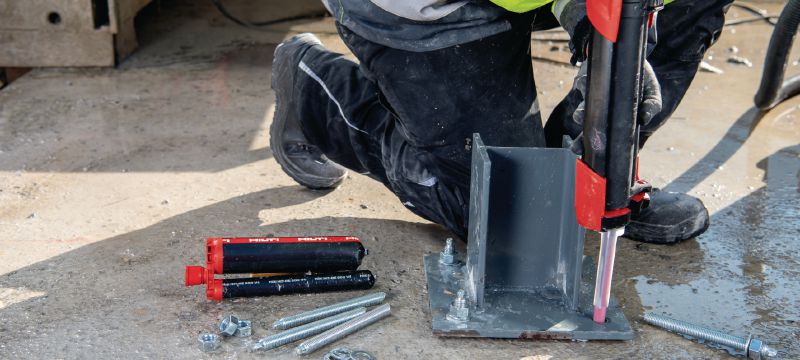

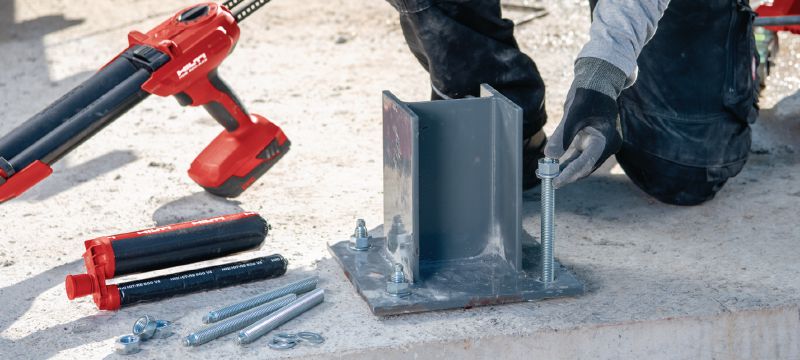

Fastening structural baseplates, including in cracked concrete and challenging seismic conditions
Fastening in natural stone and wood, including GLT and CLT made from spruce, pine or fir

‍
