FEATURES & APPLICATIONS
Features
- Powerful air-cooled diamond drilling rig with 3-speed gearbox and user-friendly features
- The optional BL quick-release shank allows you to change bits in seconds without any tools (keyless system)
- High versatility – suitable for an extremely wide range of applications
- Robust and reliable design
- LED pressure indicator allows even inexperienced operators to achieve optimal drilling speed and maximum bit life
Applications
- Making penetrations for ducts, pipes and cables
- Openings for ventilation
- Stitch drilling for breaches
- Coring holes for service entries

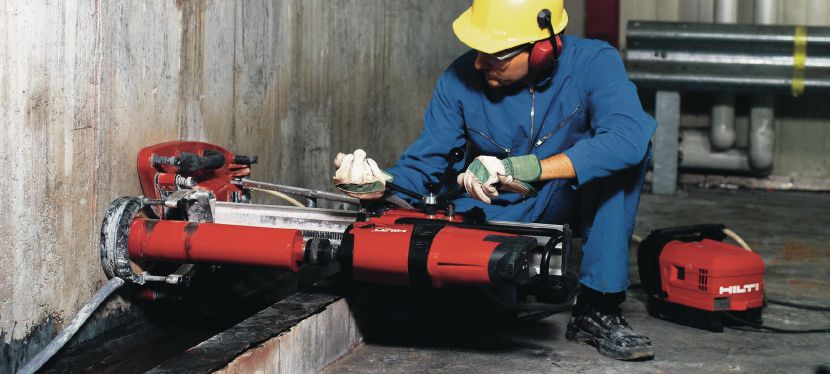

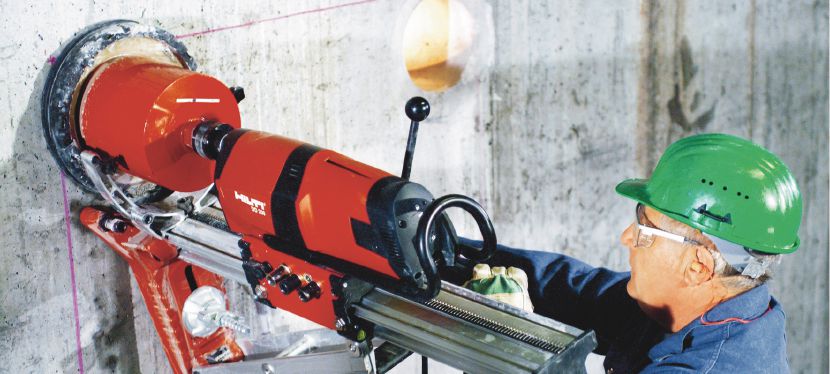

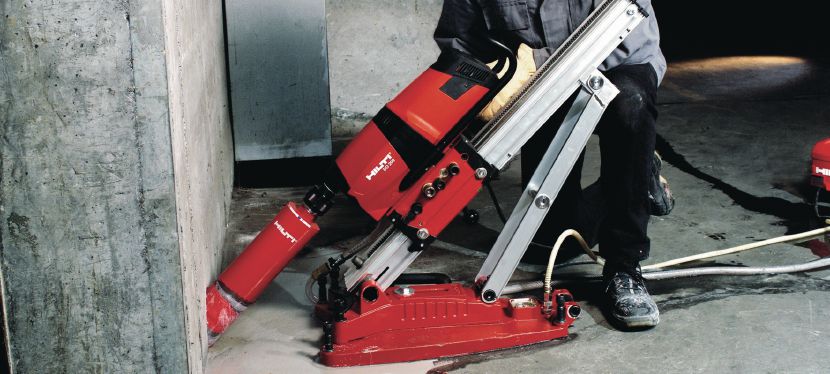

- Core drilling in ceilings, walls and floors without hammering or vibration
PRODUCT INFORMATION

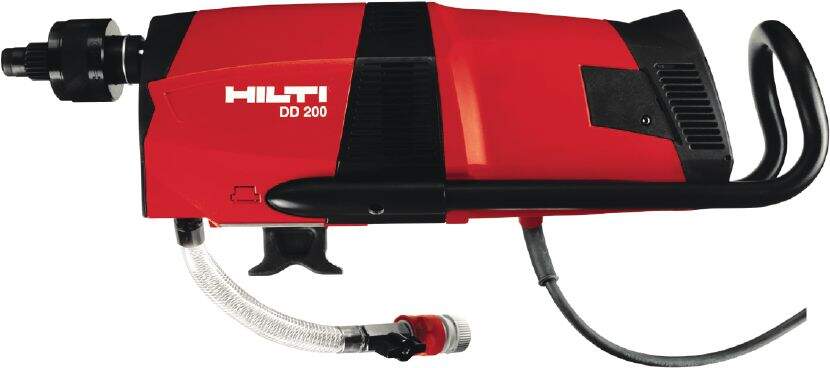

Diamond coring tool DD 200 230V BL
- Item Number: 2105461
- # of items in Package: 1
TECHNICAL DATA
- Diameter range: 35 - 500 mm
- Number of gears 3
- Operation mode: Rig-based drilling system
- Base material: Concrete
- No load RPM: gear 1: 240 rpm; gear 2: 580 rpm; gear 3: 1160 rpm
- Weight according to EPTA Procedure 01/2003: 14.6 kg
- Weight of complete system: 36 kg
- Dimensions (LxWxH): 630 x 190 x 215 mm
- A-weighted emission sound pressure level: 93 dB (A) according to EN 60745
- Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD): 2.5 m/s²
- Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A: HCL/HCS
