FEATURES & APPLICATIONS
Features
- Very high loads in cracked concrete and seismic applications according to ICC-ES and ETA C2 approvals
- No hole cleaning required (above 5°C / 41°F) with HIT-HY 200
- More reliable and productive solution thanks to elimination of the hole cleaning process when used with HIT-HY 200 adhesive mortars
- Variable depth of embedment to fully utilise the anchor capacity
- Head marking for easy verification of rod length, even after installation
Applications
- Fastenings in cracked and uncracked concrete made with Hilti HIT-HY 200
- Seismic anchoring applications (e.g. bracing of reinforced concrete buildings)

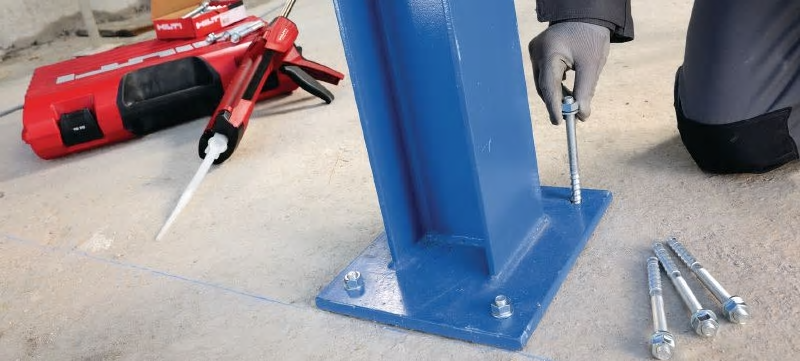

- Anchoring structural steel connections (e.g. steel columns, beams)
- Outdoor applications or fastenings in corrosive environments with HIT-Z-R
PRODUCT INFORMATION
Anchor rod HIT-Z-R M8x120
- Item Number: 2018424
- # of items in Package: 20
Anchor rod HIT-Z-R M10x135
- Item Number: 2018427
- # of items in Package: 20
Anchor rod HIT-Z-R M12x105
- Item Number: 2018429
- # of items in Package: 20
Anchor rod HIT-Z-R M12x140
- Item Number: 2018430
- # of items in Package: 20
Anchor rod HIT-Z-R M12x155
- Item Number: 2018431
- # of items in Package: 20
Anchor rod HIT-Z-R M12x196
- Item Number: 2018433
- # of items in Package: 20
Anchor rod HIT-Z-R M16x155
- Item Number: 2018434
- # of items in Package: 12
Anchor rod HIT-Z-R M16x175
- Item Number: 2018435
- # of items in Package: 12
Anchor rod HIT-Z-R M16x205
- Item Number: 2018436
- # of items in Package: 12
Anchor rod HIT-Z-R M16x240
- Item Number: 2018437
- # of items in Package: 12
Anchor rod HIT-Z-R M20x215
- Item Number: 2018438
- # of items in Package: 6
Anchor rod HIT-Z-R M20x250
- Item Number: 2018439
- # of items in Package: 6
TECHNICAL DATA
- Material, corrosion: Stainless steel, A4
- Base materials: Concrete (cracked), Concrete (uncracked)
- Type of fastening: Pre-fastening, Through-fastening
- PROFIS software: Yes
- Approvals / test reports: ETA
- Cleaning procedures: Non-cleaning
- SAFEset: Yes
- Product class: Ultimate
