Features & applications
Features
- The high-quality laser module enables long-distance measurements even in the most challenging outdoor conditions.
- The outdoor-optimized display remains easily readable even in bright sunlight.
- Integrated optical viewfinder for outdoor measurements.
- Rugged and durable design built to withstand harsh construction site conditions.
- The built-in 360° tilt sensor and smart calculation functions support measurements in complex situations.
Applications

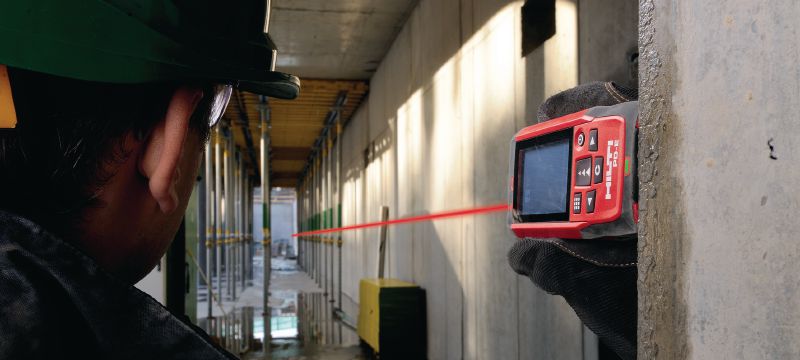

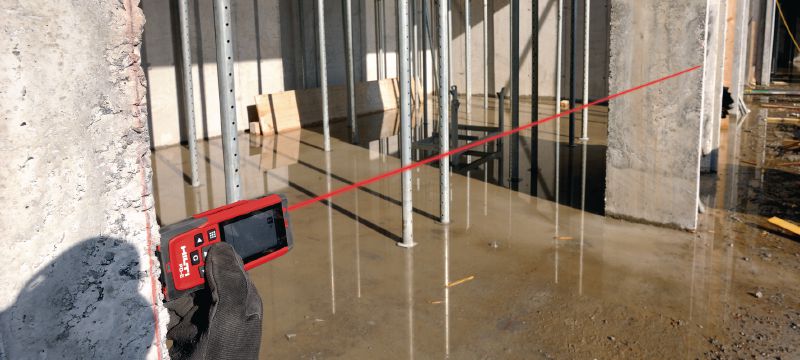

- Perform quick and safe measurements in hard-to-reach areas.
- Measure surface areas for renovation projects to prepare accurate price quotes.

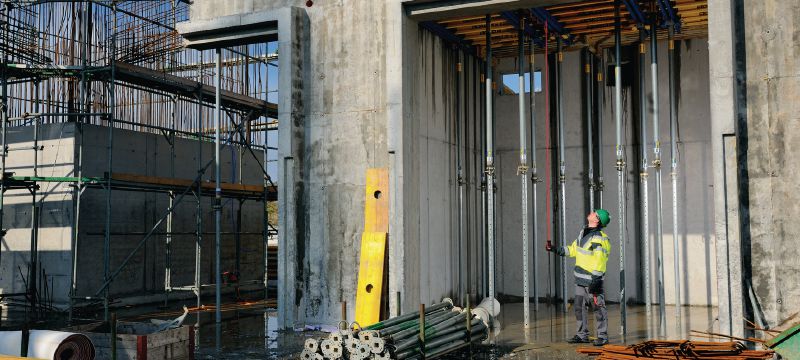

- Determine the length or height of inaccessible objects instantly (remote measurement).

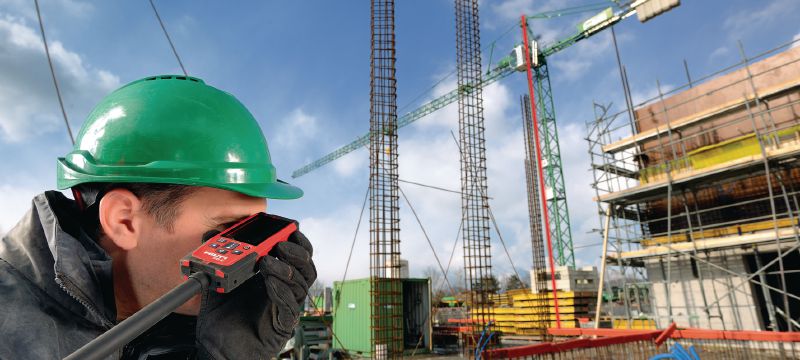

- Measure long distances using the Outdoor mode.
- Easily measure roof lengths using the Trapezoid function.
Product information

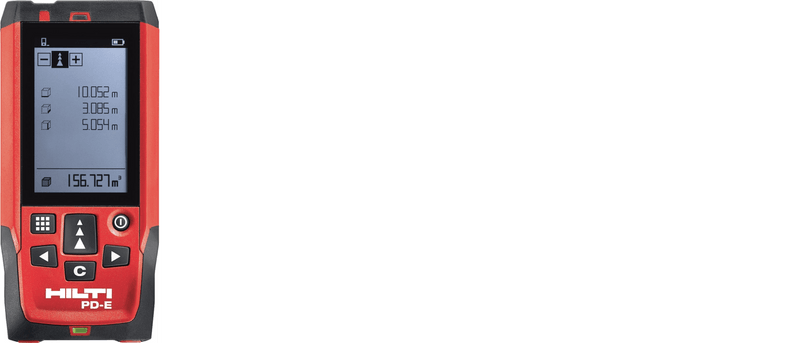

Laser Range Meter PD-E
- Item number: 2062050
- Package quantity: 1
TECHNICAL data
- Measurement range. 0 m – 200 m
- Measurement accuracy. 1.0 mm
- Measurement functions. Single and continuous measurement, Outdoor mode, digital level
- Calculation functions. addition, subtraction, area, volume, paint area, setting out, min/max value, timer, offset, memory (30 entries), trapezoid (2×), Pythagoras (3×), indirect measurement (4×)
- Data memory. last 30 measurements, calculation results with graphical display
- Battery type. 2 × 1.5 V (AAA)
- Laser class. <1 mW, 635 nm, Class 2 (EN 60825), Class II (FDA CFR 21 art. 1040)
- IP protection class. IP 65 (EN 60529)
- Interface. none
