Features & applications
Features
- High motor performance and sturdy three-speed gearing for optimum drilling speed
- 360-degree adjustable side handle with integrated dust and water management functions
- Real-time feedback display with digital spirit level, gear selector, power control function, advanced usage statistics and easy-to-understand service messages

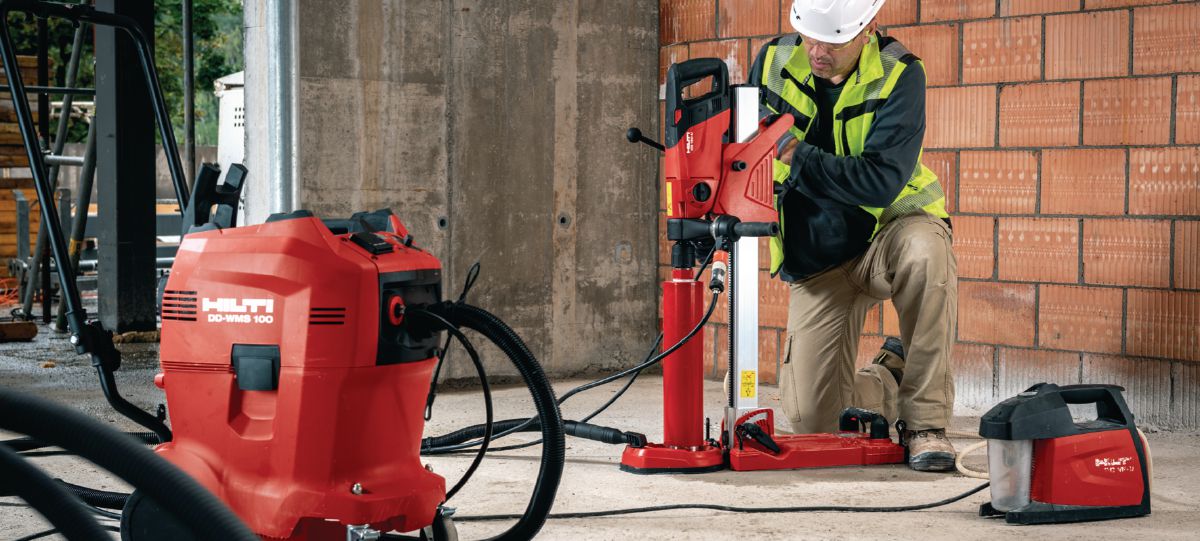

- Bluetooth® connectivity to WMS 100 water management system
- Real-time usage statistics analysis via the Hilti Connect app
Applications
- Rig-based wet drilling in concrete for pipe penetrations, cable trays and ducts and for the installation of railings and barriers
- Hand-guided wet drilling for setting large-diameter anchors and reinforcing bars
- Hand-guided dry drilling in masonry for pipe penetrations in plumbing, heating and air conditioning installations and for chimney and cooker installation
Product information
Diamond coring tool DD 150-U 220-230V
- Item Number #2204573
Technical data
- Diameter range: 8 - 162 mm
- Rated input voltage :220-240V
- Base material :Concrete, Reinforced concrete, Asphalt, Masonry
- Operation mode :Hand-held and rig-mounted drilling system
- Rated input power :2200 W
- Number of gears :3
- No load RPM :gear 1: 840 rpm; gear 2: 1640 rpm; gear 3: 3070 rpm
- Weight according to EPTA Procedure 01/2003 :8.35 kg
- Weight of complete system : 2 kg
- Dimensions (LxWxH) :516 x 129 x 159 mm
- A-weighted emission sound pressure level : 101 dB (A)
- Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD) : 3.9 m/s²
