Features & applications
Features
- Exceptionally user-friendly thanks to intuitively designed features and controls
- Compact and lightweight concrete core drill – for much easier handling
- Two-speed gearing for optimum speed and torque
- Power control LED – shows even inexperienced users how to achieve the optimum drilling speed and maximise core bit life
- Hilti BI+ quick-release connection lets you change core bits in seconds – no tools required (keyless system)

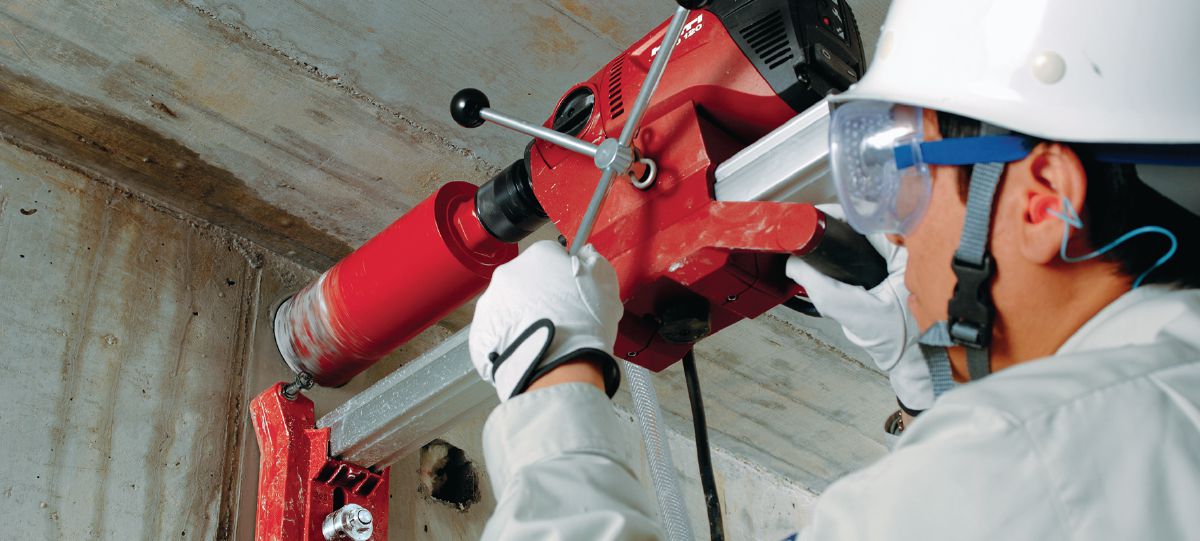

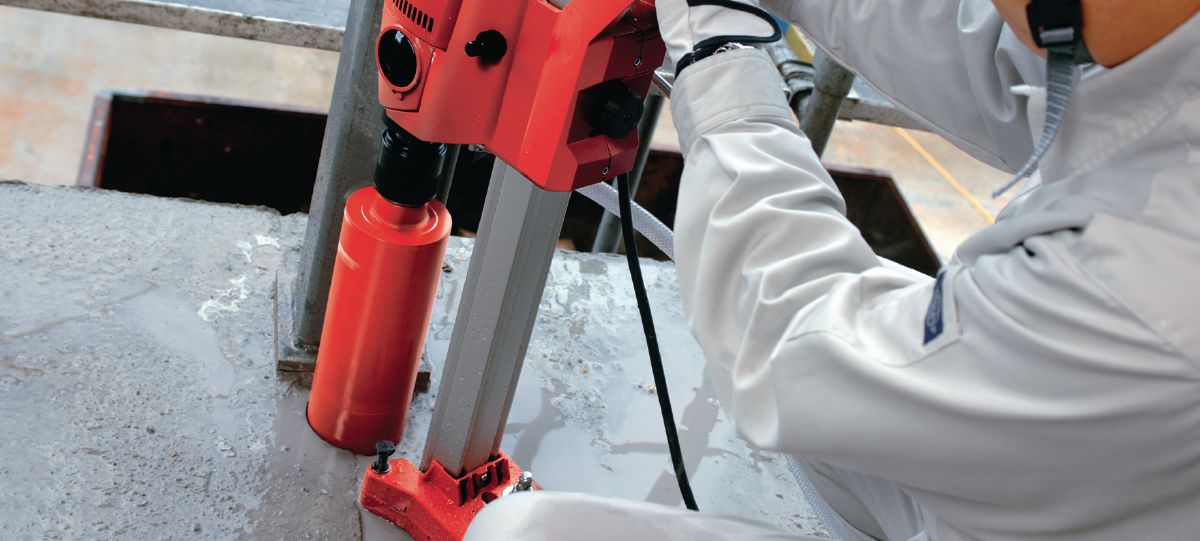

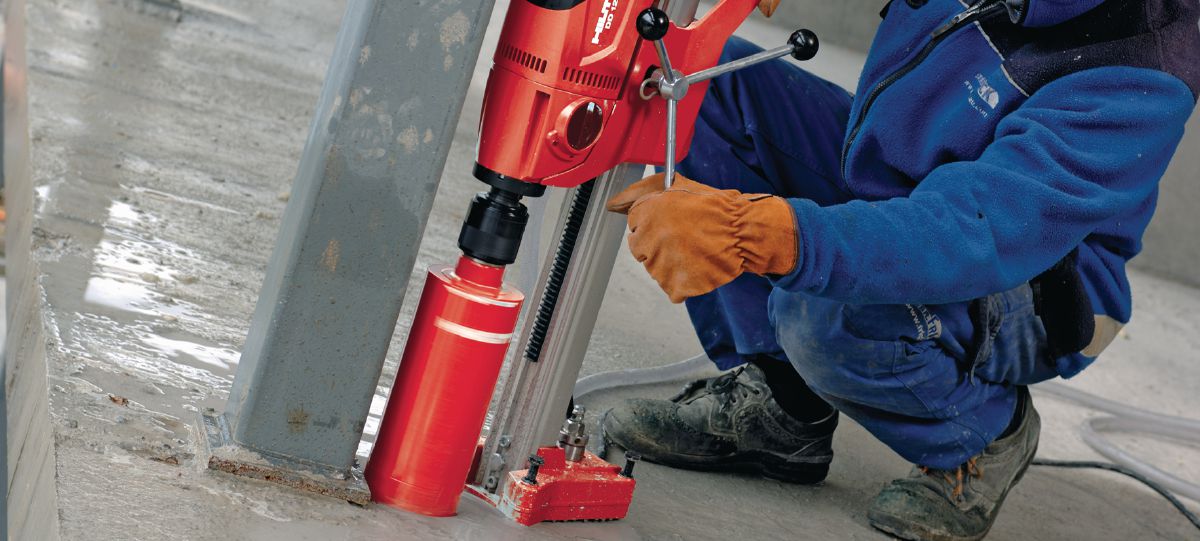

Applications
- Installing pipes for sanitary, heating and air conditioning
- Installing water supply and waste water pipes
- Making openings for cable trays
- Setting large-diameter anchors and reinforcing bars
- Installing railings and barriers
Product information

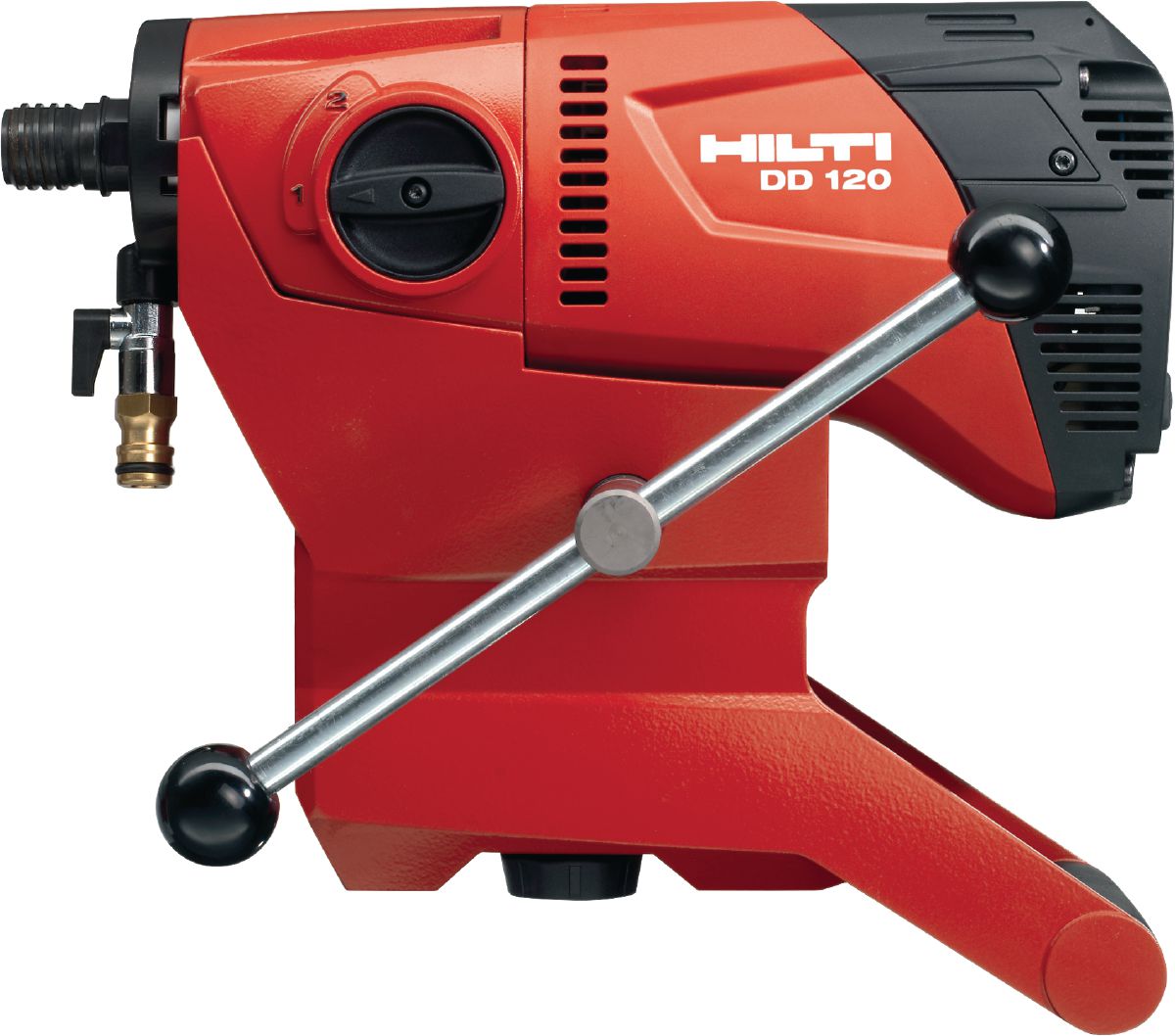

Diamond coring tool DD 120 230V
- Item Number # 2216315
Technical data
- Diameter range :16 - 162 mm
- Base material :Concrete

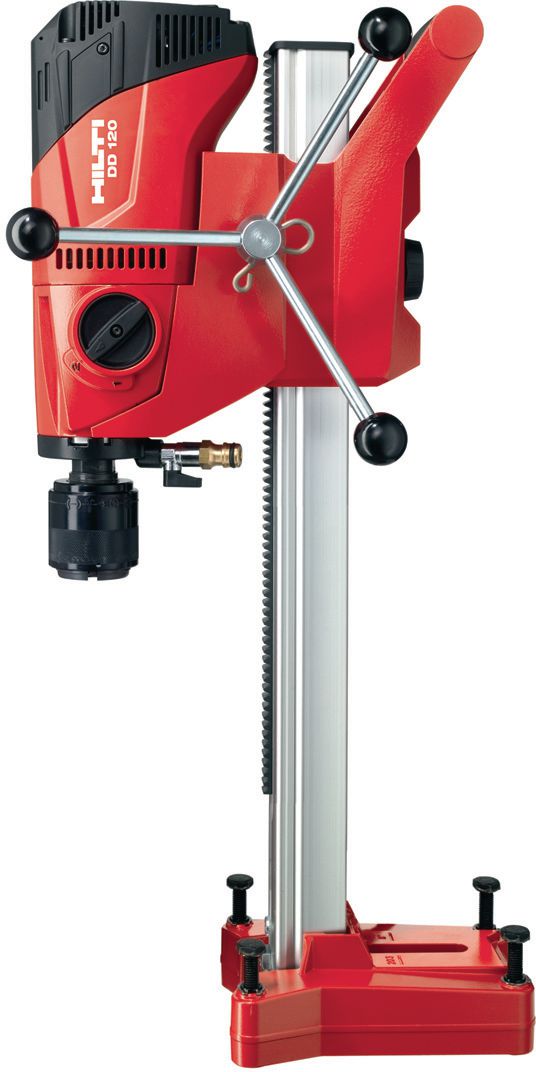

- Operation mode :Rig-based drilling system
- Rated input power :1600 W
- Number of gears :2
- No load RPM :gear 1: 740 rpm; gear 2: 1580 rpm
- Weight according to EPTA Procedure 01/2003 :10.5 kg
- Weight of complete system ;11 kg
- Dimensions (LxWxH) ;327 x 147 x 330 mm
- A-weighted emission sound pressure level :89 dB (A) 1
- Tri. vibr. value for drilling into concrete (wet) with diamond core bit A (ah,DD) :2.5 m/s²
- Tri. vibr. value for drilling into concrete (wet) (ah,DD) - core bit A :PS/PL
